Description
Jiangsu Liangyi is professional manufacturer of AM 355,Alloy 355,UNS S35500 open die forging forged parts forged forging rings and forged forging steel gas steam turbine parts factory from china

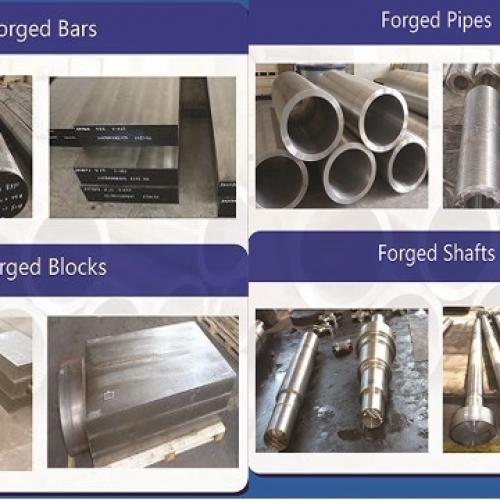

Following is the shape of AM 355,Alloy 355,UNS S35500 forging steel material that we could do is:AM 355,Alloy 355,UNS S35500 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,Alloy 355 Forged forging steel rings seamless rolled rings,AM 355 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,UNS S35500Forged Forging Steel Discs Disks Blocks plates,AM 355 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
Following is forging products of AM 355 that is used in gas steam turbine
AM 355 Forged Forging Steel Gas Steam Turbine blade steel
AM 355 Forged Forging Steel Gas Steam turbine diaphragm diapharagm nozzles
Alloy 355 Forged Forging Steel gas steam Turbine Guide Rings,seal rings Labyrinth Rings Packing Seal Diaphragm & Seal Ring Rotor End Rings contours Casing Rings/Blade Fitting Rings
Alloy 355 Forging Forged Steel Gas Turbine Wheels Discs turbine impeller turbine blisks
UNS S35500 Forged Forging Gas Turbine LPT 1st & 2st 2nd Stg Stage Turbine Case Casings
UNS S35500 Forged Forging Rolled Steel Gas Turbine LPT 1st & 2st 2nd Stg Stage Steam Turbine shrouds turbines journal and thrust bearing
UNS S35500 Forged Forging Steel power plant steam turbine control reheat valve disc Disk
AM 355 Forged forging Gas Steam Turbine Valve Spindles/Stems/Rods,
AM 355 Forging Forged Gas Steam Turbine Doubled-headed Double end Studs Fasteners Bolts
AM 355 Forging Steel Gas Steam Turbine MSV/GV/CV/CRV Valve Seats, Valve Cores, Valve Sleeves Spools,,Main Steam Valve Covers Bonnets Sleeves
AM 355 Forged Forging Steel Gas Steam Turbine Oil Guards nozzle Bearing Gland Seal Sealing Rings,
AM 355 forging Steam Gas Turbine Inlet Guide Vane IGV Control Ring Lower Upper Half,Outer Inner Transition Ducts,
AM 355 forged Forged Forging Rolled Gas Steam Turbine Inner Outer Heat Shields,
The maximum diamter of AM 355 forging steel parts in we could produce is 3 meter, the maximum weight of Alloy 355 forging steel material that we could produce is 25 tons, the maximum length of UNS S35500 forging steel products that we could do is 12 meter
The Melting methods for UNS S35500 forging steel material is Ef / Eaf + Lf + Vd / ESR that depends on clients needs,The remelted variant (ESR) for AM 355,Alloy 355,UNS S35500 guarantees the highest purity and homogeneity.
Alloy 355, AM 355 is chromium-nickel-molybdenum stainless steel which can be hardened by martensitic transformantion and/or precipitation hardening. It has been used for gas turbine compressor components such as blades,discs,rotors and shafts and similar parts where high strength is required at intermediate elevated temperatures.
The chemical compostion of AM 355 forging parts that we could produce is as followings
AM 355 forging chemnical compostion
Carbon 0.10-0.15
Manganese 0.50-1.25
Silicon 0.50 max
Phosphorus 0.040 max
Sulfur 0.030 max
Chromium 15-16
Nickel 4-5
Molybdenum 2.50-3.25
Nitrogen 0.07-0.13
FOllowing is heat treatment mechanical property of AM 355,Alloy 355,UNS S35500 forging steel turbine parts
AM 355 Bar 850°F L Yile strength 1255MPA Tensile strength 1489MPA Elongation 19% reduction 38%
AM 355 Bar 850°F T Yile strength 1276MPA Tensile strength 1517MPA Elongation 12% reduction 21%
AM 355 Bar 1000°F L Yile strength 1179MPA Tensile strength 1276MPA Elongation 19% reduction 57%
AM 355 Bar 1000°F T Yile strength 1165MPA Tensile strength 1276MPA Elongation 15% reduction 40%
All our forged AM 355,Alloy 355,UNS S35500 forged parts will be done in following test
Tensile testing
Charpy Testing (-320°F to +350°F)
Hardness testing
Macro-etching
Non-Destructive Test Capabilities to Military and Commercial Standards (ASNT)
Level III / Test Examiner
Level II inspectors qualified to perform
Ultrasonic testing
Liquid penetrant inspection
Magnetic particle inspection
Dimensional/visual inspection
Metrology laboratory (dimensional)
Pyrometry laboratory (temperature)
Welcome your inquiry of AM 355,Alloy 355,UNS S35500 forging forged steel parts
