Description
Jiangsu Liangyi is professional manufacturer of 20NiCrMoS2-2,1.6526,21NiCrMoS2,20 NiCrMoS 2-2, 20NiCrMoS2.2 open die forging parts and seamless rolled steel forged rings from china
Following is the shape of 20NiCrMoS2-2 1.6526,21NiCrMoS2 forging steel material that we could do is:20NiCrMoS2-2 Forged Steel round bars square bars Flat bars Rectangles Bars Rods,1.6526,Forged forging steel rings seamless rolled rings,20NiCrMoS2-2 Forged Forging Steel Hubs housing shell Sleeves Bushes Bushing Cases Hollow Bars,1.6526 forging forged steel shafts,gear,pinion shafts,spindles,gear wheel,1.6526 Forged Forging Steel Discs Disks Blocks plates,1.6526 Forged Forging Steel Pipe Tubes Tubings Piping Shells Casings Case barrels Housings.
20NiCrMoS2-2 is defined as low Ni-Cr-Mo alloy steel as per EN10084 standard.It has good weldability,toughness,and machinability,but low in corrosion resistance.20NiCrMo2-2 is suitable for parts which require high hardness and good wear resistance after nitriding.
FOllowing is production standard of 20NiCrMoS2-2 forged shafts
EN 10277-4: 2008 Bright steel products. Technical delivery conditions. Case hardening steels
EN 10084: 2008 Case hardening steels. Technical delivery conditions
EN 10263-3: 2001 Steel rod, bars and wire for cold heading and cold extrusion. Technical delivery conditions for case hardening steels
EN 10297-1: 2003 Seamless circular steel tubes for mechanical and general engineering purposes. Non-alloy and alloy steel tubes. Technical delivery conditions
Chemical composition of 20NiCrMoS2-2,1.6526,21NiCrMoS2,20 NiCrMoS 2-2, 20NiCrMoS2.2 forging shafts is as following
C 0.17 - 0.23
Si max 0.4
Mn 0.65 - 0.95
Ni 0.4 - 0.7
P max 0.025
S 0.02 - 0.04
Cr 0.35 - 0.7
Mo 0.15 - 0.2
FOllowing is heat treatment way of 20NiCrMoS2-2 1.6526 forging shafts
Normalizing: Normalizing is carried out at a temperature of approx. 910°C, followed by cooling in air. Thereby, the workability can be improved. Before case hardening, normalizing can be performed.
Soft annealing: Soft annealing is carried out at temperatures of 650°C - 700°C, with a slow cooling in the oven.
Tempering: The material 1.6526 can be tempered at 840°C - 870°C and is then quenched in oil or in the air.
Tempering: At 200°C - 700°C, a tempering treatment can be performed to improve toughness with minimal impact on hardness.
Following is mechenical property of 20NiCrMoS2-2 1.6526 forging material
Rm - Tensile strength (MPa) hardening and tempering at 200 1100
Rm - Tensile strength (MPa) (+AC) 590
Z - Reduction in cross section on fracture (%) 57-62
Brinell hardness (HBW): (+A) 212
Brinell hardness (HBW): (+TH) 161 - 212
Brinell hardness (HBW): (+FP) 149 - 194
We should do following following NON-DESTRUCTIVE TEST for all 1.6526 forging bars
Verification inspection of all 1.6526 forged steel bars.
100% Ultrasonic inspection of all bars above 40mm size according to EN 10308 type 1a and 1c table 1). Acceptance criteria are as follows.
· d or (a,b) = 200mm quality class 4
· d or (a,b) = 200mm quality class 3
In general, the decision limit for loss of back wall echo is 3 dB and for the real reflector length max. 10mm.
The finished 1.6526 forged round bars shall be straight, sound and free from internal and surface defects viz., cracks,piping, scabs, laps, hairline cracks, etc. The bars shall be free from twists and bends.
, The surface of the bars shall be smooth without any laps, rolled in scales, etc. Dents roll marks and scratches are permitted provided their depth does not exceed half the tolerance limits specified
The following details shall be furnished in the test certificate of finished 20NiCrMoS2-2,1.6526 forged steel:
Heat No. , and melting type.
Dimensional inspection
Details of heat treatment cycle followed.
Results of chemical analysis including tramp elements.
Results of mechanical tests, including hardness test. All individual values shall be reported.Results of ultrasonic tests
Results of surface crack examination
Confirmation of the visual inspection
Confirmation of the verification inspection
Results of additional tests called for in the drawing/order.

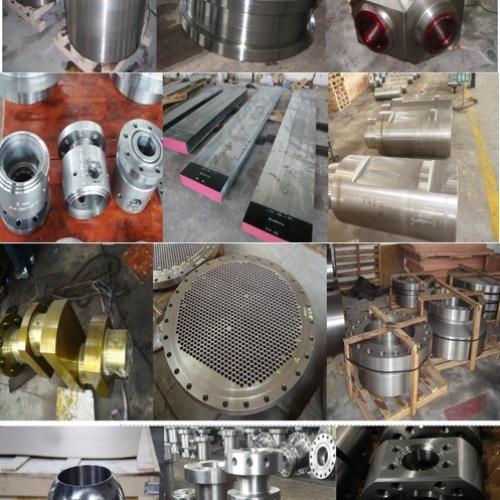

Following is forging products of 1.6526 material that is used in following industry
1.6526 Forged Forging Sugar Mill Gear shafts,pinion shafts,roller shafts,flanges coupling
20NiCrMoS2-2 Cement Mill Rotary Kiln Forged Forging Steel case hardened ground Pinion Shafts
20NiCrMoS2-2 Forging Forging Steel mill gear pinion shafts
20NiCrMoS2-2 Forging wind turbine gearbox gear shafts,ring gears
1.6526 forging forged locomotive transmission shafts
20NiCrMoS2-2 forging forged crane wheels
20NiCrMoS2-2 hydro turbine shafts
1.6526 Forging gearbox,gear reducer gear wheels, pinion shafts,ring gears,
20NiCrMoS2-2 Forging crankshafts for gas compressor, mechanical presses,pump.
1.6526 forging steel Spindles
1.6526 Forging steel gear couplings
20NiCrMoS2-2 Forged Forging Rolled Steel Granulators driers coaters coolers Riding Gear Rings
1.6526 Forged Forging Steel Cement Plant Pull Torque Rods
1.6526 Forged Forging Steel Crusher Shaft eccentric shafts,Mining Mine rock Gyratory crusher Eccentric shafts Spindles,Crusher Belt Pulley Wheels.
20NiCrMoS2-2 Forged Forging Steel Mining Excavator Slewing Bearing Ball Races rings
20NiCrMoS2-2 Forged Forging Steel Oil Drilling Tools Gear Shaft Pinion Shafts
20NiCrMoS2-2 Forged Forging Steel helical gearing ground ship gearwheel Gear Wheels
20NiCrMoS2-2 Forged Forging Steel Dragline Drag Line Power Shovel Cam Swing Shafts Shafting Spindles,dragline CENTRE PINTLE
20NiCrMoS2-2 Forged Forging Steel Atomizer Shafts For Flue Gas Desulfurization scrubber Systems
20NiCrMoS2-2 Forged Forging Steel drilling rigs Mud pump herringbone gear shafts pinion shafts
1.6526 Forging Forged Steel Thread Tie Rods
1.6526 Forged Forging Steel Electric Shovel Shaft Couplings
1.6526 Forged Forging Steel Granulator Gear Shafts
1.6526 Conveyor Pulley Forging Forged Steel Shafts factory
1.6526 Forged Forging Steel Hydraulic Honed Cylinders
1.6526 Forged Forging Steel Mine hoist systems Equipment Shaft Shafting Spindles
20NiCrMoS2-2 Forged Forging Steel Rotary Dryer Trunnion Wheels
20NiCrMoS2-2 Forged Forging Forge Steel Cold Mill Decoiler Coiler Mandrel Drum Shafts
1.6526 Forged Forging Steel bullgear Spider Gear Rims
1.6526 Forged Forging Shovel SWING Rimmed GEARING Gear DRUM GEAR,SWING PROPEL Pinion SHAFTS
1.6526 Forged Forging Steel Truck RING GEARS PLANET GEARS PINION SHAFTS
1.6526 Forging Forge Steel Offshore subsea anchor winches Stub Shafts Spindles
1.6526 Forged Forging Steel Seamless Hot rolled Truck concrete mixers semi-trailer bearings Rings
1.6526 Forged Forging Steel Subsea oil gas drilling equipments Box Riser Joint
1.6526 Forged Forging Railway locomotive Traction Motors end housings Rear End Shields
Welcome your inquiry of 20NiCrMoS2-2,1.6526,21NiCrMoS2,20 NiCrMoS 2-2, 20NiCrMoS2.2 forging parts
